1.DLR Perforated type cable trays: Our Perforated cable trays are meticulously crafted using advanced high-speed punching machines, while the flanges are precision-formed using cold-rolled machines. These trays feature strategically placed perforations or holes along the sides, serving multiple essential functions.

Primarily, these perforations facilitate optimal air circulation around the cables, making these trays particularly well-suited for environments characterized by elevated temperatures or higher humidity levels.

Specifications: Tray width ranges: 50 mm -800 mm, Tray height ranges: 25 – 120 mm, Tray Thickness:1.6 mm – 3 mm. Tray Length: 2.5 – 6 meters, Finishes: Hot Dip Galvanized as per IS 2629, 2633 & 4759, pre-galvanized as per IS 277, Stainless Steel as per IS 202,304,314 & Powder coated & Aluminium.

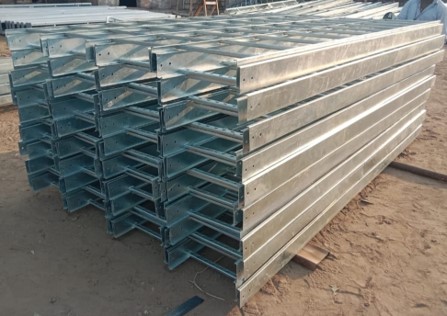

2. DLR Ladder type cable trays: Our Ladder Type Cable Trays have a series of horizontal rungs and vertical supports that form a ladder like structure. This type of cable tray is mainly used for medium and heavy-duty applications. The rungs provide support for the cables, while the vertical supports provide additional strength and stability. This type of Ladder type cable trays is generally used in areas with higher cable loads, such as in industrial and commercial buildings. Specifications: Tray width ranges: 150 mm -1200 mm, Tray height ranges: 50 – 120 mm, Tray Thickness:1.6 mm – 3 mm. Tray Length: 2.5 – 6 meters, Finishes: Hot Dip Galvanized as per IS 2629, 2633 & 4759, pre-galvanized as per IS 277, Stainless Steel as per SS 202,304,314 & Powder Coated & Aluminium

3. DLR Ladder Type Cable Tray Accessories: Horizontal Bend, Vertical Inside/Outside Bend, Horizontal Tee Bend (Equal/ UN Equal), Horizontal Cross, Left Reducer, Right Reducer Specifications: Accessories Bending Radius ranges: 150 mm – 600 mm, Bending Inclination: 45 – 90Degrees.

4. DLR Covers: We offer various cover types such as Plan Type, C/U Type, and Hut Type, Specifications: Covers boast thicknesses ranging from 1.6 mm to 3 mm. Finish: Pre-galvanized, Hot-dip galvanized, and Powder Coated.
